Gantry Crane Plans, 1 to 2 1/2 Ton, Easy to Build, Choice of Options

Price:     $10
Time Left:    (Feb 3, 2018 02:44:04 UTC)
Condition: New
Location: 88310, Alamogordo, New Mexico

Seller's Notes:

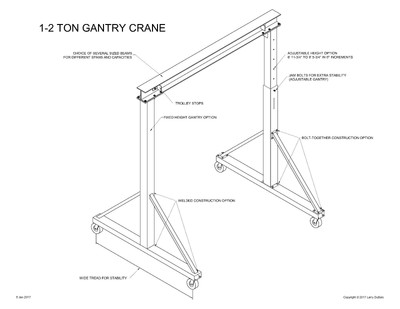

The EASY LIFT Gantry Crane Plans BUILD THIS GANTRY CRANE YOURSELF WITHOUT PAYING FOR EXPENSIVE SHIPPING ON A PRE-BUILT UNIT EASY TO BUILD AND EASY TO USE These PLANS include a 20 page CD (or, an optional printed copy) of construction details for a strong and sturdy gantry. SEVERAL OPTIONS ARE AVAILABLE: Capacities from 1 to 2-1/2 tons. All steel members have been spec'd and load calculated to ensure safe capacity margins.Spans from 9 to 12 feet wide.Unlimited fixed heights.Adjustable heights from 7 to 9 feet. Innovated lever system allows you to easily raise or lower bridge. Other heights available.Choice of bridge I-beam style depending on the availability of beams in your area. The construction of this gantry only requires basic metal working and welding skills. There are no complicated angles to cut. The most complicated cuts are a four 45 degree angles. The rest are square cuts. The plans use a simple 3D pictorial method of construction without complicated engineering symbols and other terminology to learn. See examples below. The plans also include a Material List, Parts List, Cut List, Drill Diagram and Assembly Instructions. Operation instructions show how to properly and safely use the gantry. CONTACT ME FOR A FREE SAMPLE OF THE PLANS. YOU CAN SEE HOW EASY IT IS TO FOLLOW THE PLANS AND CONSTRUCT THIS GANTRY. The pictures below show the typical assembly sequences for the gantry major assemblies. Normal 0 false false false EN-US X-NONE X-NONE Track Page Views With Aucti...
